Left section of the System Configuration dialog

Setup Control Modules

Lists the configured equipment (e.g. internal or external A/D converters for data acquisition, directly controlled chromatographs, autosamplers, LC pumps, etc.).

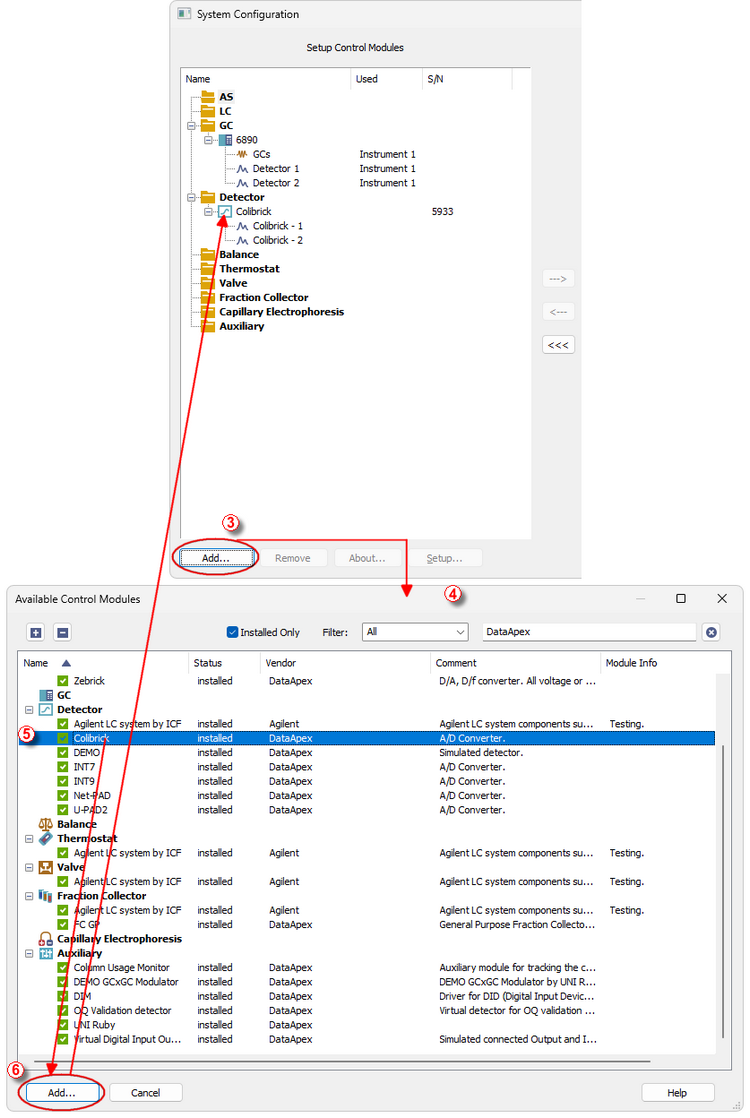

System Configuration - left part and Available Control Modules dialogs

Add

Adds and configures drivers for any available equipment. After prompting, the Available Control Modules dialog will appear with a list of all available drivers for data acquisition and chromatographic equipment control (for more details see also chapter Available Control Modules).

Note:

If you wish to use one control module for two various Instruments, you have to add it to the Clarity station twice.

Select the required item (name of the driver) . By clicking the Add button or double clicking on the item you can add the selected driver to the Setup Control Modules list. X Driver Setup dialog (where X stands for the device name) will appear, enabling you to fill in the exact configuration of the device (for more details on this, see the Help of the particular control module).

Note:

Drivers correspond to CSW???.DLL files, which are present in the station’s main station directory. The physical presence of these files in the directory is not sufficient. Files must be “registered”, which is done automatically by the installation program. Files both registered and present can be checked in the station’s main window using Help - About command. The list can be found on the System Files tab. Reinstalling the station easily resolves all file registration problems.

Remove

Removes the selected configured equipment from the Clarity station.

About

Displays the information regarding the selected equipment’s driver.

Setup

Sets driver parameters for selected equipment in X Driver Setup dialog, where X is the equipment name, e.g. INT7, U-PAD, HP6890, etc.

Note:

The X Driver Setup dialog can be also called up by double clicking on the name or icon of the device and is automatically displayed while adding the device to the Clarity station.
