Filter Not Used Compounds

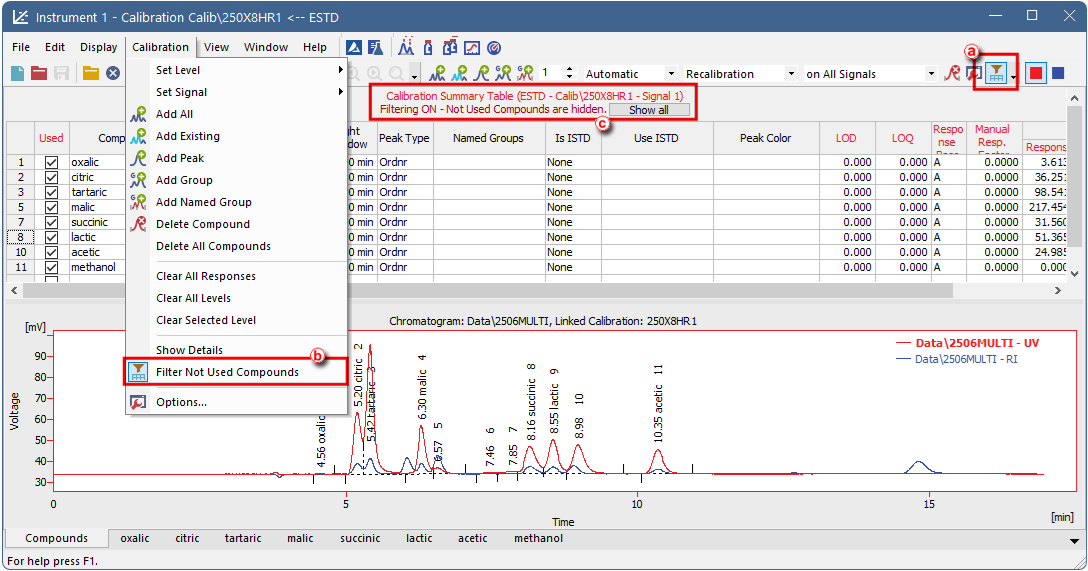

Filter Not Used Compounds function can be turned on/off from toolbar ⓐ, Calibration menu ⓑ and local menu of Calibration Summary Table.

When active, all rows of Calibration Summary Table that have the Used checkbox unchecked are hidden along with the corresponding individual compound tabs.

When some rows are hidden, warning "Filtering ON - Not Used Compounds are hidden." ⓒ is displayed above the Calibration Summary Table. Same warning is also displayed in reports. Clicking Show all switch off Filter Not Used Compounds function and show all hidden rows.
