Setting a custom image and a name for an instrument

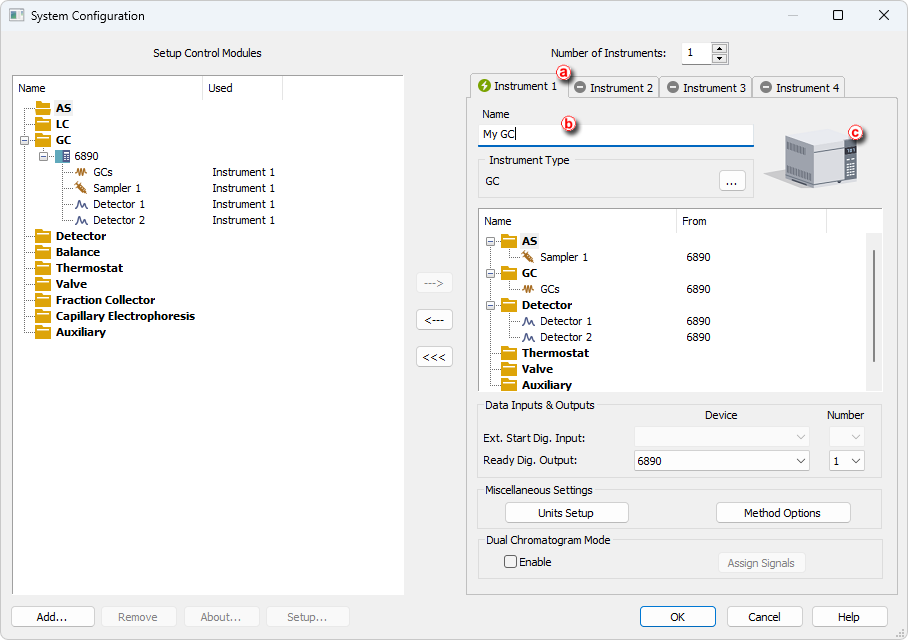

  1. Enter the System Configuration dialog: select System - Configuration…in the Main window.

  1. Click on the Instrument 1..4 tab to select the instrument ⓐ.
  2. Type the name of the instrument in the Name field ⓑ.
  3. Click on the image of the Instrument ⓒ to invoke Instrument Image Setup dialog.

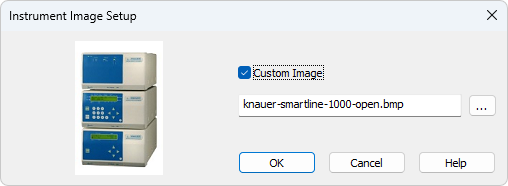

  1. Check the Custom Image check-box and then click on to select your image. Click OK to save your changes.
  2. Repeat for every Instrument you wish to change the name or the pictures.
