Peak Purity View

Views: Isoplot - Chromatogram - Spectral - 3D - Peak Purity - Peak Purity Spectra - Spectral Library - Spectral Search

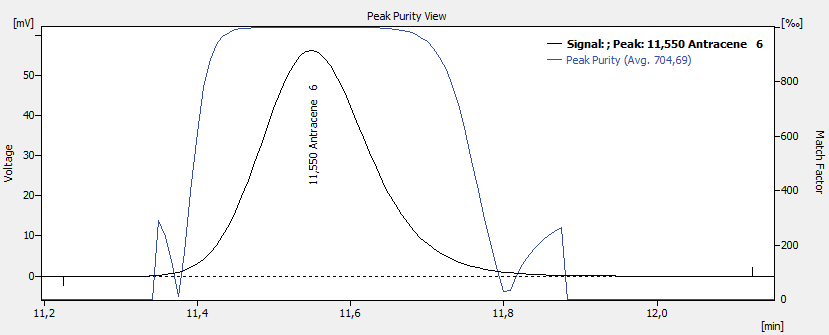

The Peak Purity View displays the peak previously selected in the Chromatogram or Isoplot views after the Display Peak Purity command is used. Along with the peak, the Match Factor value is displayed. If no peak has been selected, the No peak selected label is displayed instead.

Peak Purity View

The Toggle to Spectra command from the context menu switches the view in the pane to the Peak Purity Spectra View for the same peak.

The Peak Purity is calculated according to the settings from the PDA Method of the chromatogram that can be viewed and edited on the Chromatogram - Measurement Conditions - PDA tab (for more details see also chapter Measurement Conditions).
