Spectral Library View

Views: Isoplot - Chromatogram - Spectral - 3D - Peak Purity - Peak Purity Spectra - Spectral Library - Spectral Search

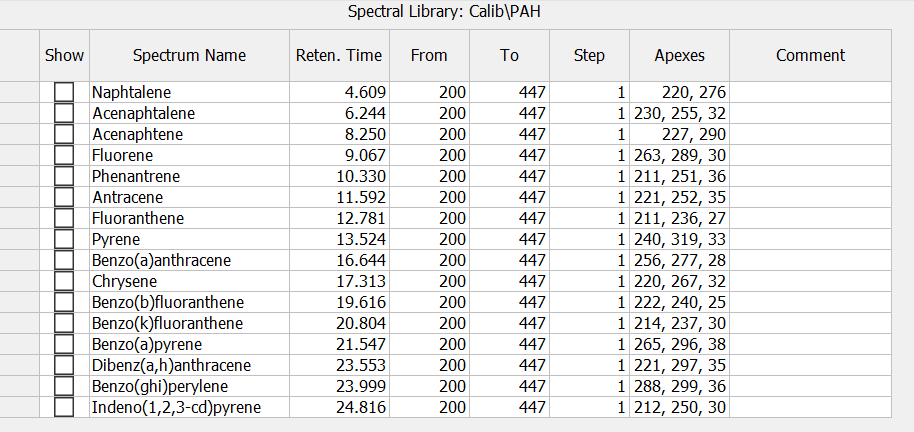

The Spectral Library View displays the spectra information from the currently opened Spectral Library. The spectral library name can be seen in the header of the Spectral Library View.

Spectral Library View

The Spectrum Name and Comment columns can be edited. To delete a spectrum from the library, select its line and press the Delete key.

To add the spectrum to the library, use the Spectrum - Add to Library... command (for more details see also chapter Spectrum).

The spectra may be overlaid to the current spectrum in the Spectral View by checking the checkbox in the Show column. To hide the spectrum, uncheck its checkbox. The overlaid spectra will be hidden automatically when another library will be opened.
