Axes Appearance tab

Tabs: General - Graph - Axes Appearance - Signals & Curves - Gradient & Auxiliary Signals - Directories

Sets appearance options for the graph axes.

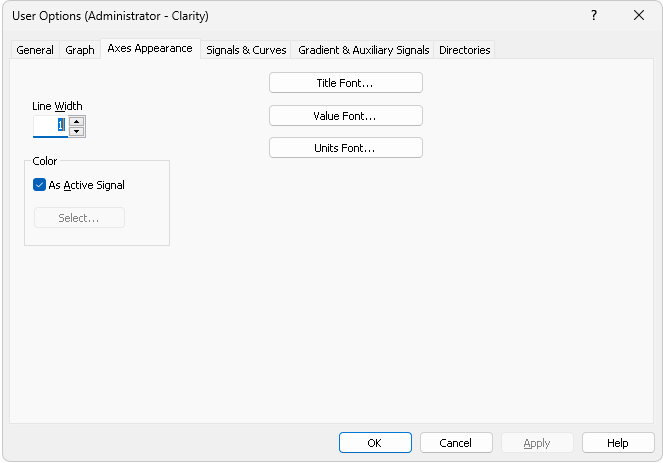

User Options - Axes Appearance

Line Width - Axis width in pixels. Enter value between 1 and 10.

Color - Axes color selection.

As Active Signal - Color will be the same as the color of the active signal.

Select… - Color selection button.

Title Font… - Selects font for axes titles.

Value Font… - Selects font for axes numerical values.

Units Font… - Selects font for axes units.
