Chromatograms

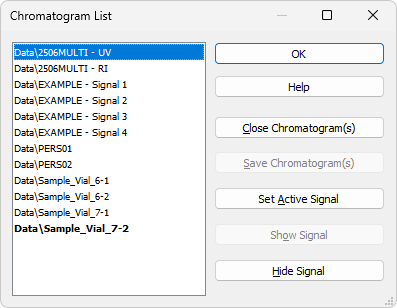

Displays the Chromatogram List dialog with a chronological list of all opened chromatograms/signals.
Note:
Active signal is highlighted in bold letters, hidden signals are displayed in gray color.
The maximum number of signals that can be simultaneously displayed in the Chromatogram window ranges from 2 to 10 000 (the default setting is 20) is determined by the Maximum Chromatograms in Overlay item from the User Options - General dialog.
Closes the selected chromatogram(s) and all of its(theirs) signals.
Saves the entire selected chromatogram(s).
Sets the selected chromatogram (signal) as active.
Note:
You can also double click a signal in the list to make it active.
Displays selected signals.
Note:
The command will only be active if the selected signal has previously been hidden.
Hides selected signals.
