Link Table
Caution:
This dialog is in Clarity also shared with the Link Table dialog of the NGA Extension, however, items in the Link Table are saved in each Extension separately.

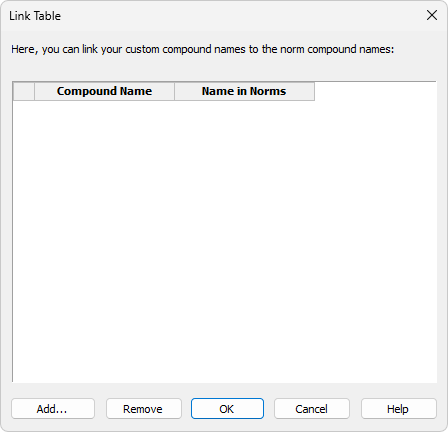

This dialog is used for editing the Link Table in the DHA Extension. The Link Table is used in those cases, when you have unresolved compound names in the Result Table. For example, you are using compound names specific to your language, but in the selected norm, there is a different name for the same compound. The Link Table allows you to use your custom compound names from calibrations and chromatograms as often as you need, without any changes in the norms.
1st column in the table
Line number of compounds present in the Link Table.
The compound name in the Calibration that you want to link with the name in norms, and thus to include in the Result Table and Group Result Table.
The compound name present in norms (if the name is in multiple norms, only one occurrence is displayed).
Add…
Displays the Add Link dialog for adding a new record to the link table.
Remove
Removes the selected record from the Link Table.
OK
Saves the settings to the Link Table and exits.
Cancel
Exits the dialog without saving any changes to the Link Table.
