Link Table
Caution:
This dialog is in Clarity also shared with the Link Table dialog of the DHA Extension, however, items in the Link Table are saved in each Extension separately.

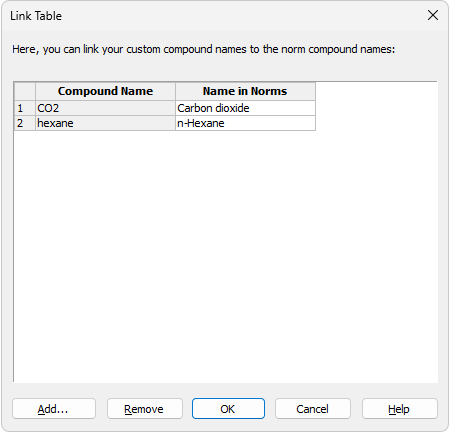

This dialog serves for editing the Link Table in the NGA Extension. Link Table is used in cases, when you have unresolved compound names in the NGA Amounts. For example, you are using compound names specific for your language, but in the selected norm there is a different name for the same compound. Link Table enables you to use your custom compound names from calibrations and chromatograms in norms repeatedly, without any changes in the norms table.
After you add some link to the Link Table, you can add them to the Calibration using the drop-down menu in the Calibration window.
1st column in the table
Order number in the Link Table.
Compound name in the Calibration you want to link with the Name in Norm and thus include it in the NGA Results.
Compound Names occurring in norms (if the name is in multiple norms, only one occurrence is displayed).
Add…
Displays the Add Link dialog for adding a new record to the link table.
Remove
Removes the selected record from the link table.
OK
Saves settings to the link table and exits.
Cancel
Exits the dialog without any changes in the Link Table.
