Graph Properties - Auxiliary Signal Details tab

Tabs: Graph - Axes Appearance - Time Axis - Signal Axis - Signals - Gradient & Auxiliary Signals - Auxiliary Signal Details - MS Spectra

This window lets you to adjust the appearance of Auxiliary signals recorded together with the chromatogram. The tab copies part of its functionality from the Auxiliary Signals tab of the User Options dialog described in the chapter "Gradient & Auxiliary Signals tab ".

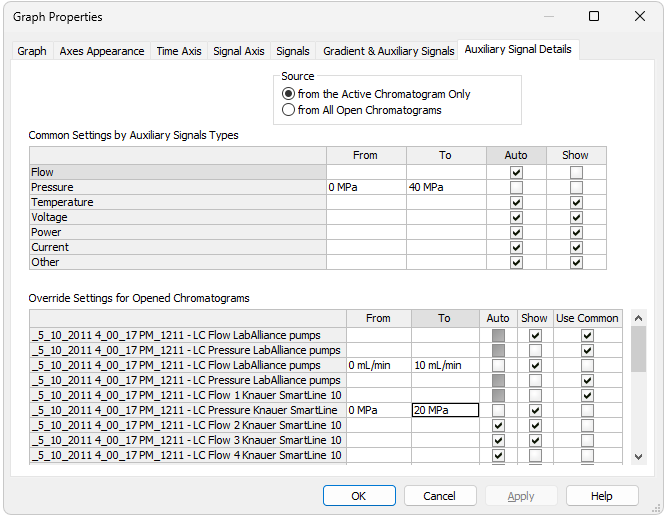

Graph Properties - Auxiliary Signals

Source

Select for which chromatograms the auxiliary signals will be displayed

Note

This option is enabled when Use User Option checkbox on the Gradient & Auxiliary Signals tab is not checked.

Common Settings by Auxiliary Signals Types

Sets the auxiliary signal axis range for auxiliary detectors. When the Auto checkbox is checked, the auxiliary signal axis range starts at a minimal value and enlarges according to the auxiliary signal course. While unchecked, the axis range is fixed with the values entered in the respective From and To columns. Unchecked checkbox Show will not display unchecked auxiliary signals in the chromatogram.

Override Settings for Opened Chromatograms

Override the settings for any particular auxiliary signal from currently opened chromatogram. When the Auto checkbox is checked, the auxiliary signal axis range starts at a minimal value and enlarges according to the auxiliary signal course. While unchecked, the axis range is fixed with the values entered in the respective From and To columns. If checkbox Use Common is checked, parameters from the Common Settings by Auxiliary Signals Types table will be used in displaying the auxiliary signals.

Note:

It is possible to hide the auxiliary signal directly in the Chromatogram window by holding CTRL and left mouse double click on the appropriate signal.
