Graph Properties - Graph tab

Except for the Use User Options and Show Data Points parameters, the tab is identical to the Graph tab of the User Options dialog described in the chapter "Graph tab".

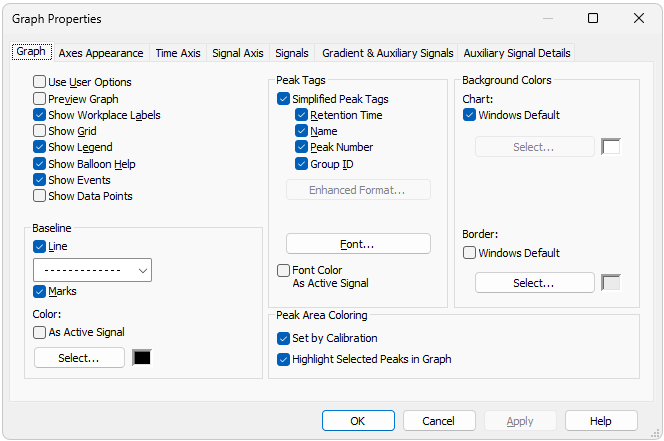

Graph Properties - Graph

Use User Options

All parameter settings will be taken from the global setting in the User Options - Graph dialog (accessible from the Instrument window using the Settings - User Options… command).

Show Data Points

When checked, shows the individual data points in the graph. These data points may be inspected while zoomed in the investigated area of the graph.

Note:

This parameter setting is not saved in the desktop file and its selection is only valid until the Instrument window is closed.
