Graph Properties - Axes Appearance tab

Tabs: Graph - Axes Appearance - Time Axis - Signal Axis - Signals - Gradient & Auxiliary Signals - Auxiliary Signal Details - MS Spectra

Displays graph axes. Except for the Use User Options parameter, the tab is identical to the Axes Appearance tab of the User Options dialog described in the chapter "Axes Appearance tab".

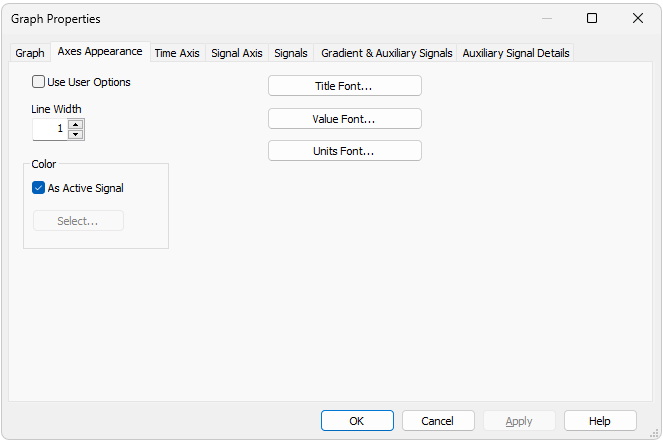

Graph Properties - Axes Appearance

Use User Options

All parameter settings will be taken from the global setting in the User Options - Axes Appearance dialog (accessible from the Instrument window using the View - Options… command).
