Clarity SDK - Screenshots

Clarity SDK serves for rapid development of control modules for Clarity chromatography software

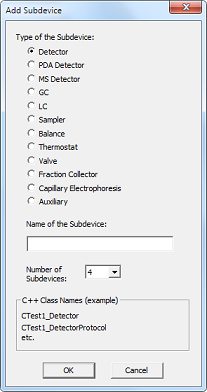

SDK Wizard - Type of Control Module

Add Subdevice window

SDK Wizard will guide you thorough the creation of empty project that will be set up to address the requirements of the selected hardware.

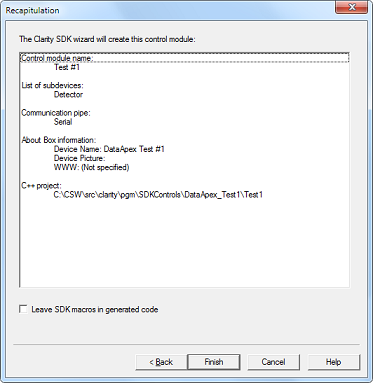

SDK Wizard - Recapitulation

Recapitulation window

In this example SDK Wizard collected all information necessary for creation of the source codes for the new control module.

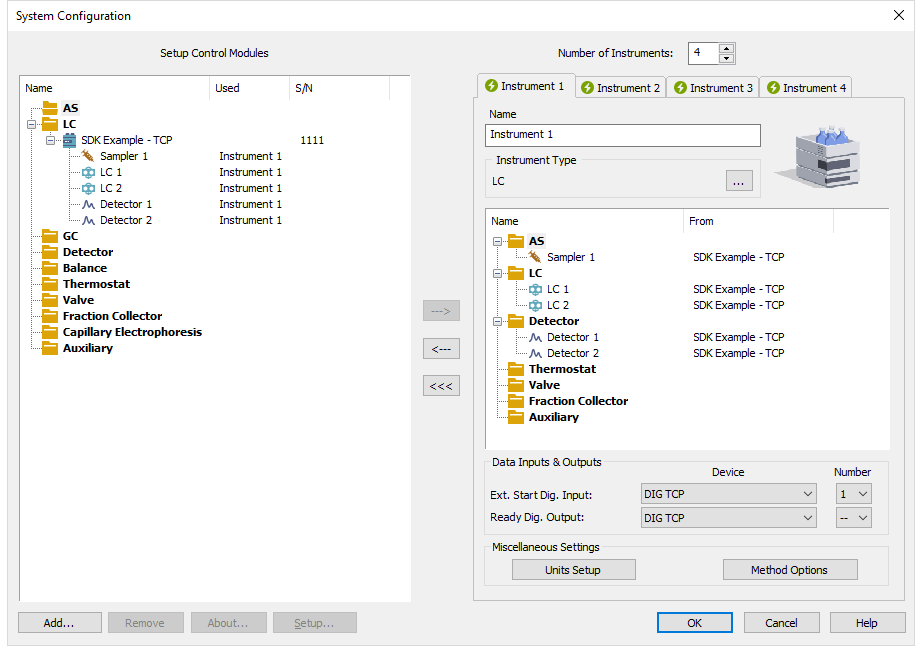

System Configuration dialog

Configuration SDK Example

The new control module created using the SDK can be used with Clarity SW. The image displays the Clarity System Configuration dialog with TCP/IP example project.

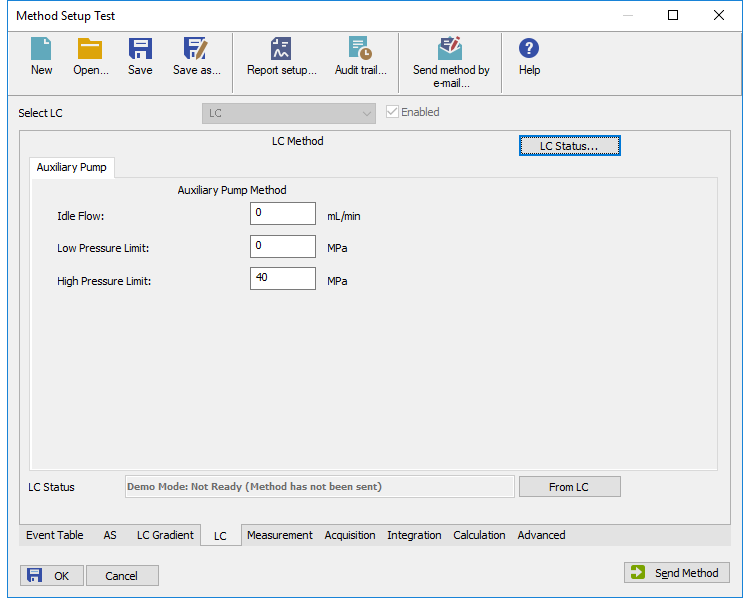

Method Setup window

Method Setup SDK Example

The GUI of the Control is seamlesly integrated in the Clarity SW environment.
